Sunday BMX 20" Street Sweeper Jake Seeley Signature Bike
The Sunday Street Sweeper bike is designed with serious street riders in mind.
Built around Jake Seeley’s CrMo aftermarket signature BMX frame, it uses a 75.25° head tube angle, a very short chainstay and a higher bottom bracket to match perfectly with Jake’s technical riding style. With its 4-piece bars, 160mm cranks, sealed Odyssey Clutch freecoaster and Sunday Street Sweeper tyres, this is truly a pro-level bike. Follow @thejakeseeley.
Features
-
Aftermarket Sunday Street Sweeper frame
-
100% chromoly forks and 4-piece bars
-
Sunday Seeley signature grips
-
Sunday Seeley seat, pivotal
-
Odyssey Clutch v2 freecoaster
-
Odyssey Quadrant rims
-
FSA conical headset
-
Right hand or left hand drive
-
Sunday Street Sweeper 2.4" tyres
Specifications
-
Frame - Sunday Street Sweeper, 20.75" top tube, 100% chromoly aftermarket frame, removable brake hardware
-
Fork - Sunday Pro, 20", 100% chromoly fork w/ 1-piece steerer tube and welded pre-load, 25mm offset
-

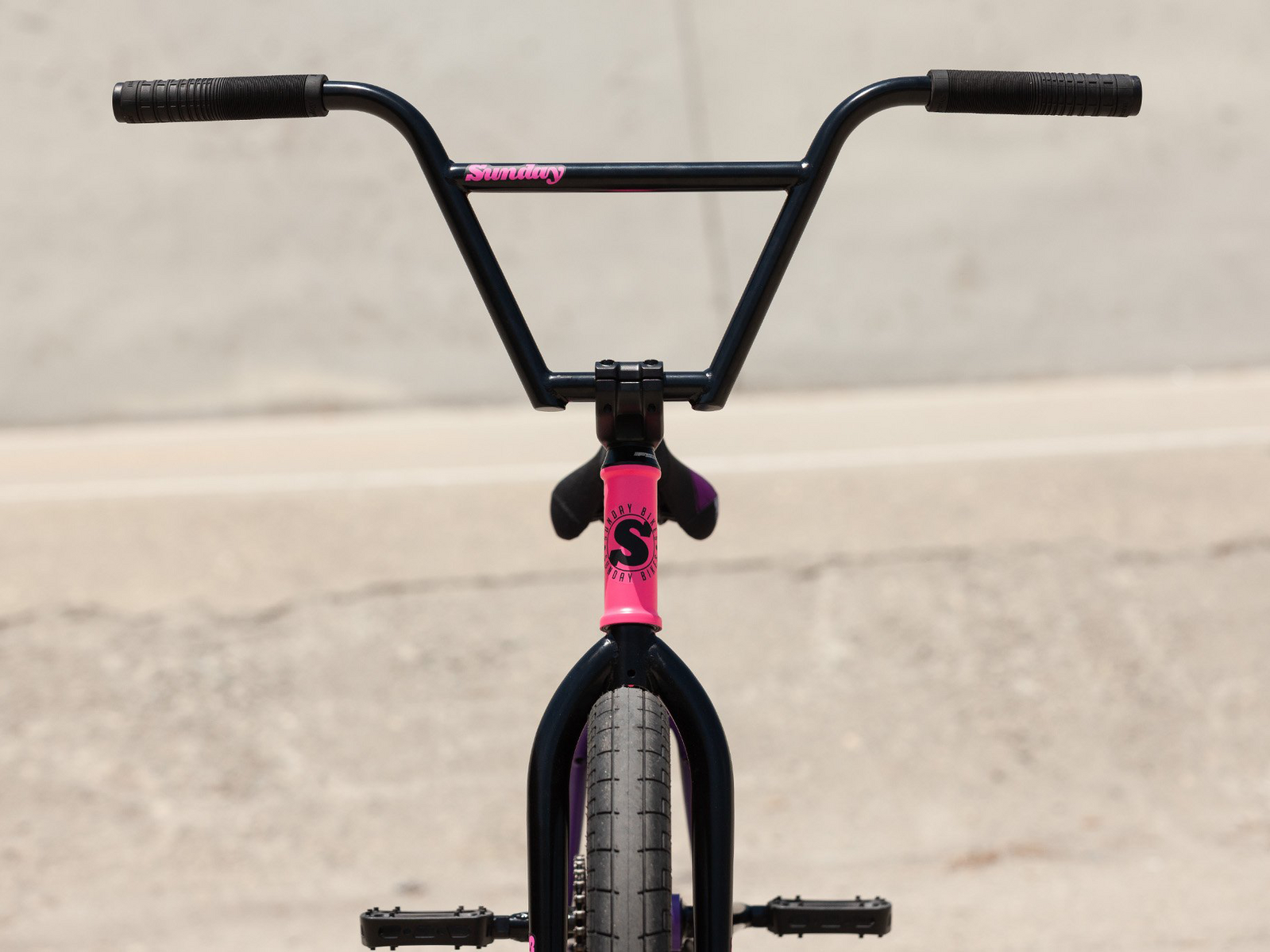

Handlebar - Sunday, 100% chromoly, 4-piece with bar pad
-

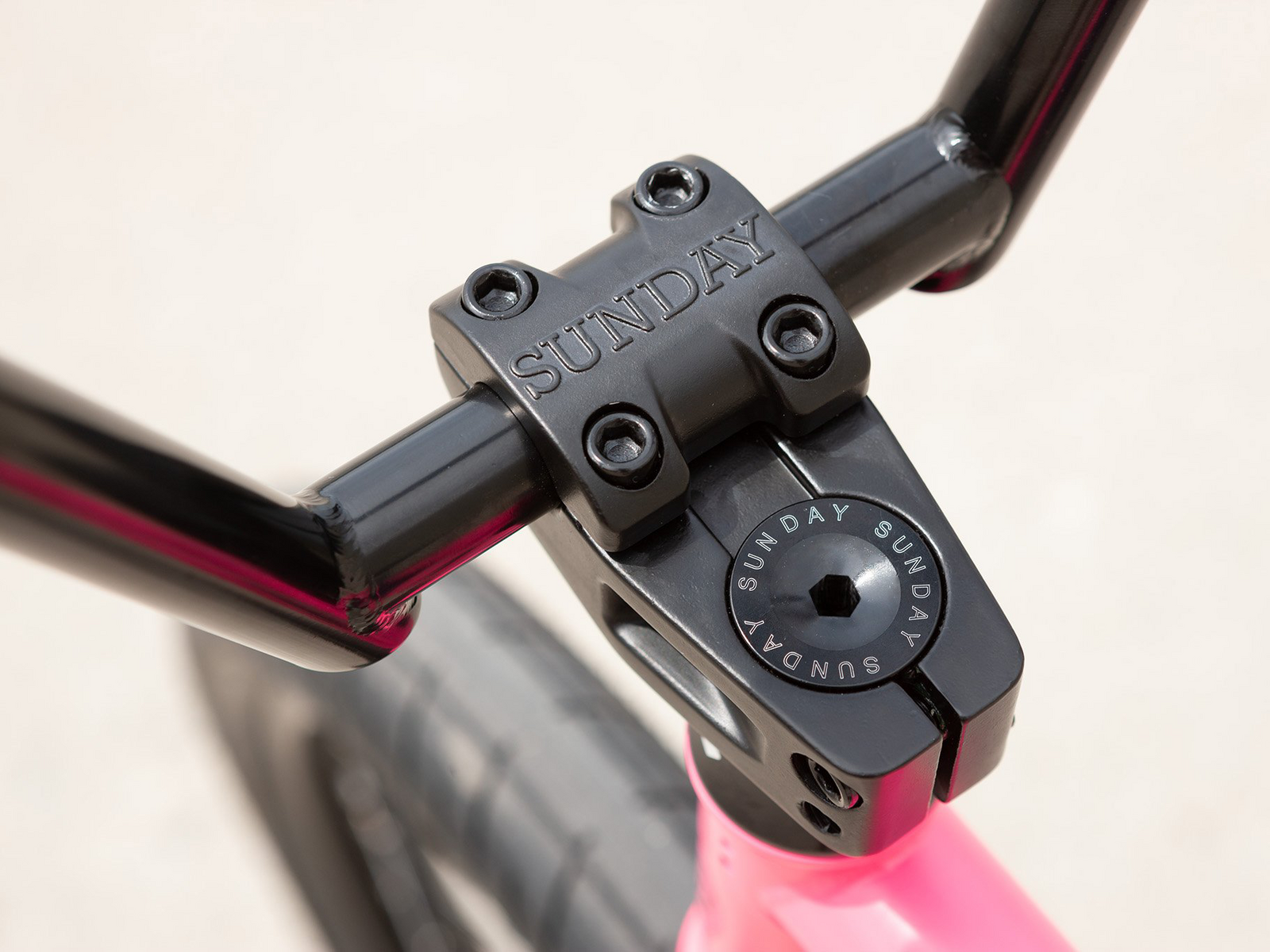

Stem - Sunday Freeze top load, 48mm
-
Headset - FSA integrated conical, 1-1/8"
-
Alloy Cap - Sunday M16, aluminum
-
Brake Lever - Odyssey Springfield
-
Brakes - Odyssey Springfield U-brake
-
Brake Cable - Odyssey Quik Slic
-

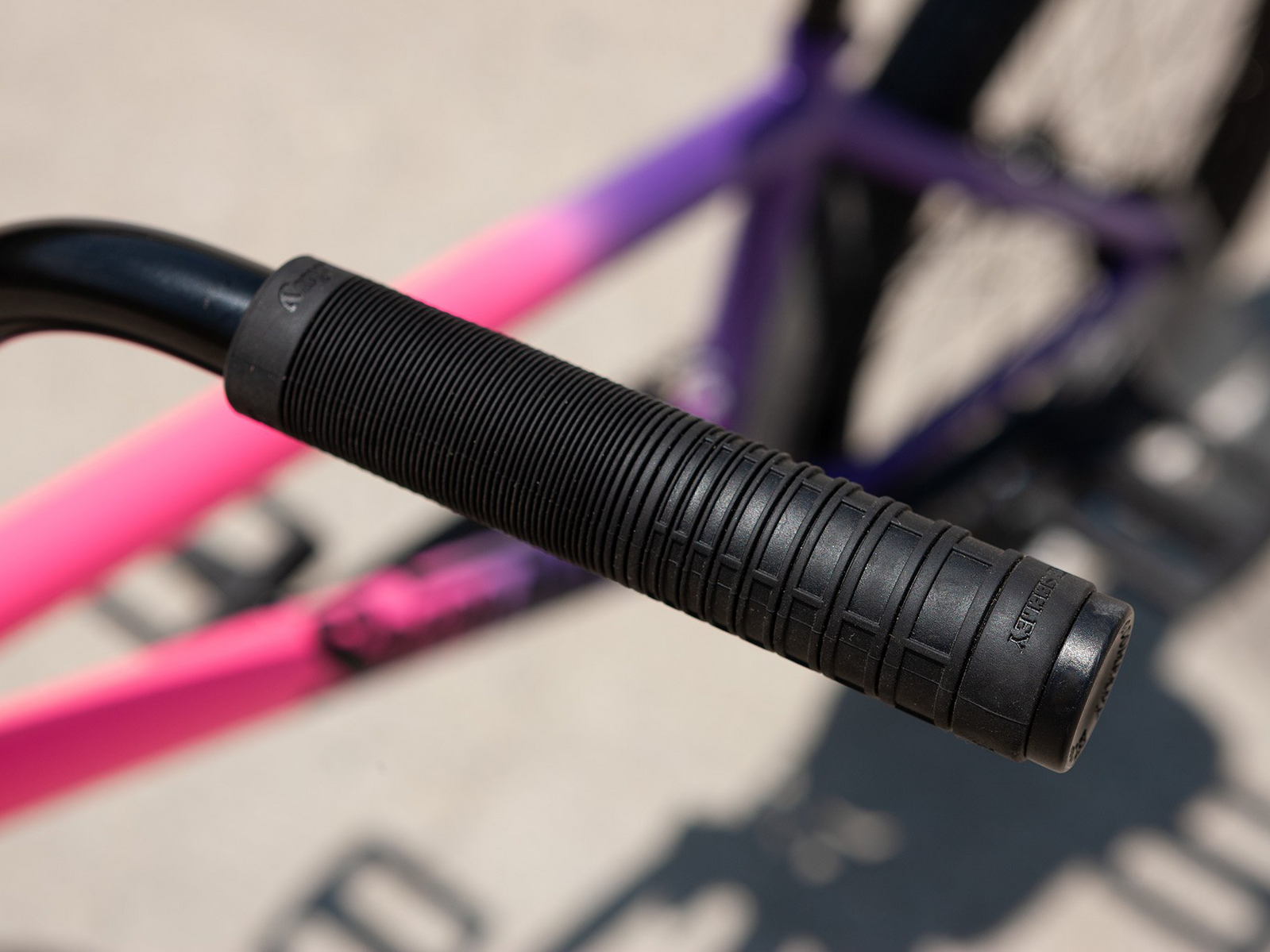

Grips - Sunday Jake Seeley
-

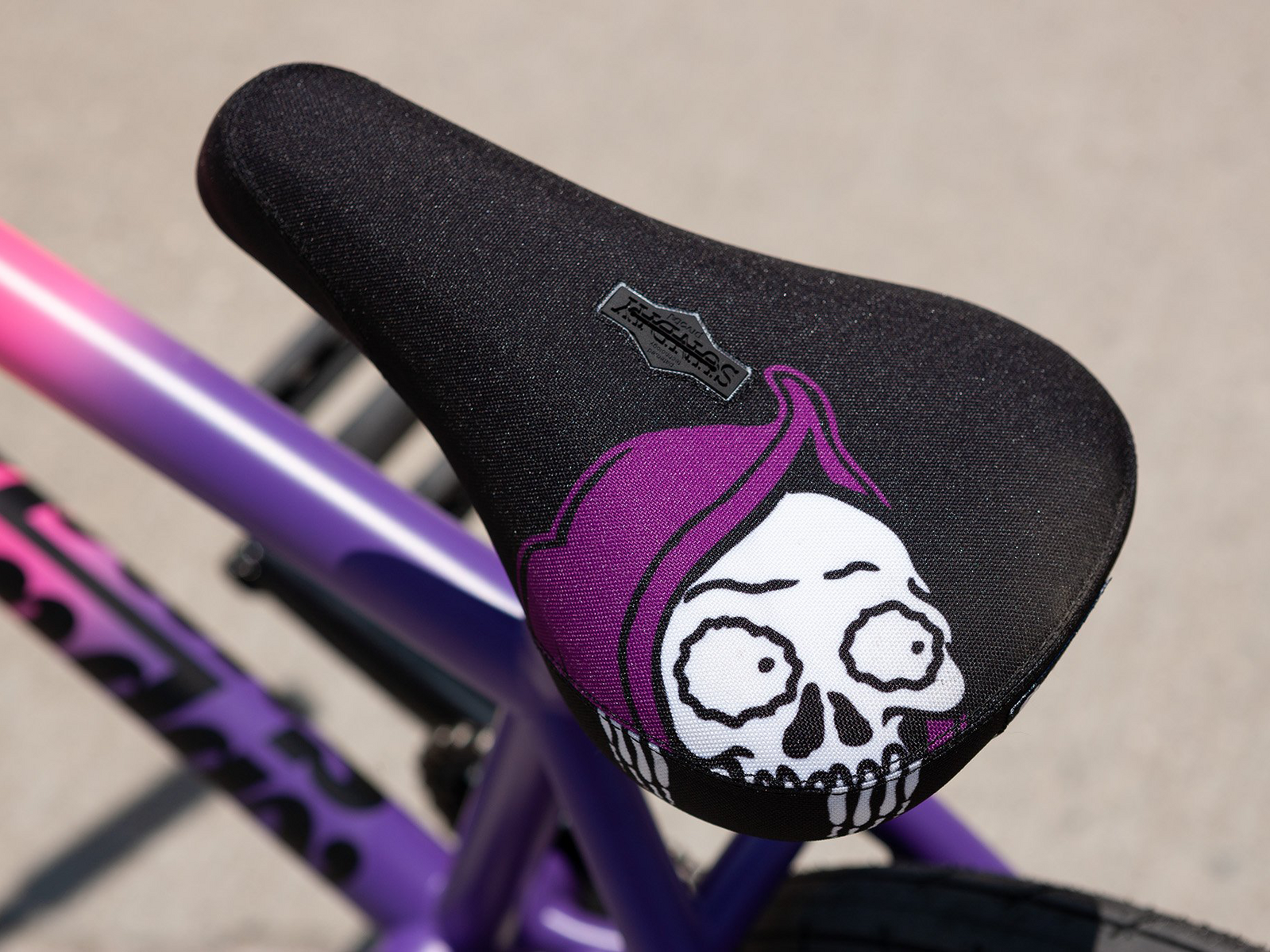

Seat - Sunday Seeley, pivotal (Matt Blue/Lavender), Sunday Creepy Sweeper, Pivotal (Matt Pink/Grape Fade)
-
Seat post - Sunday pivotal
-
Seat Clamp - Integrated
-

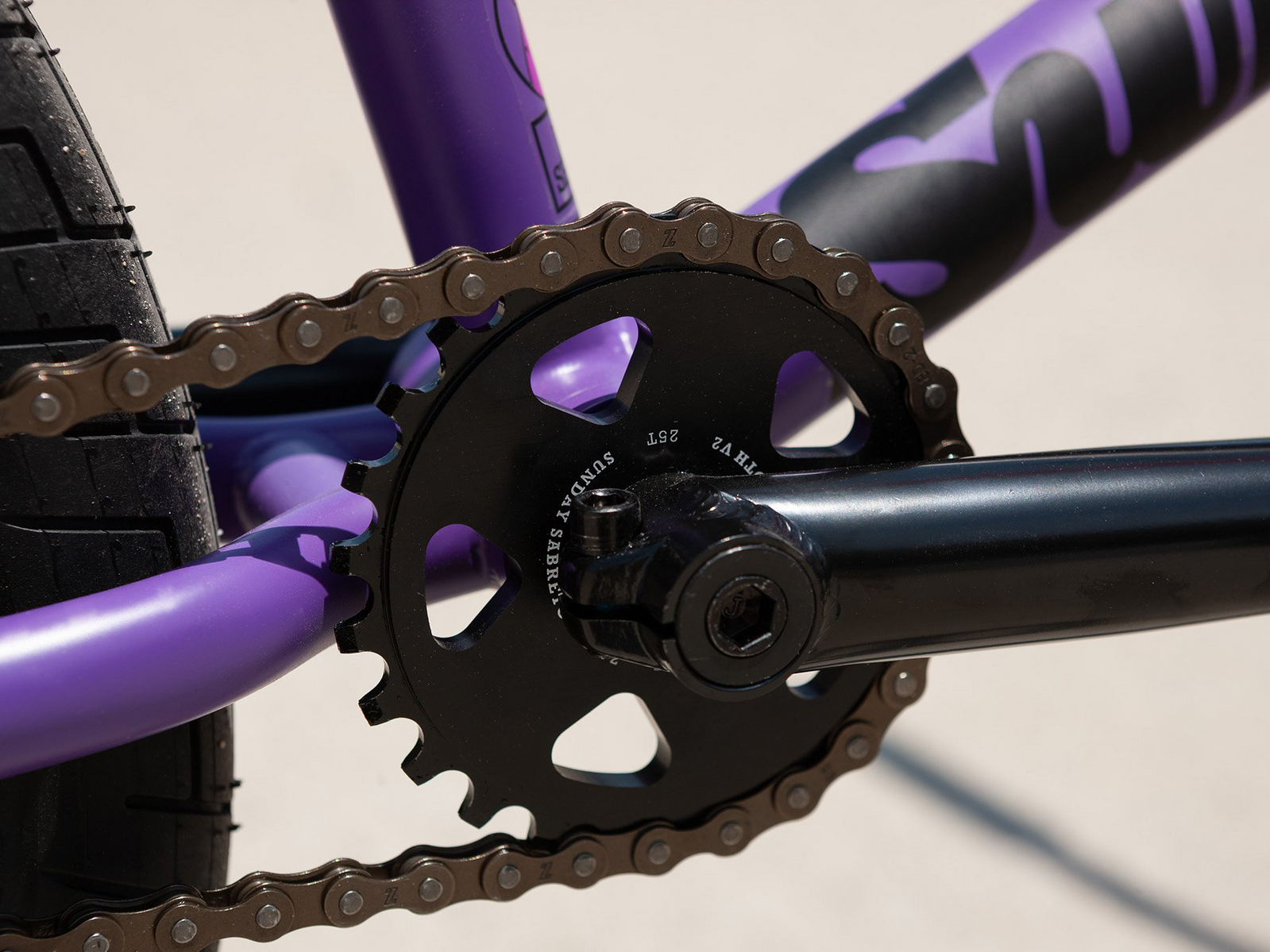

Sprocket - Sunday Sabretooth v2, 25T, 6061 aluminum
-
Cranks - 160mm, 3-piece, chromoly
-
BB Parts - Sealed, mid, 19mm
-
Pedals - Odyssey Twisted PC Pro
-

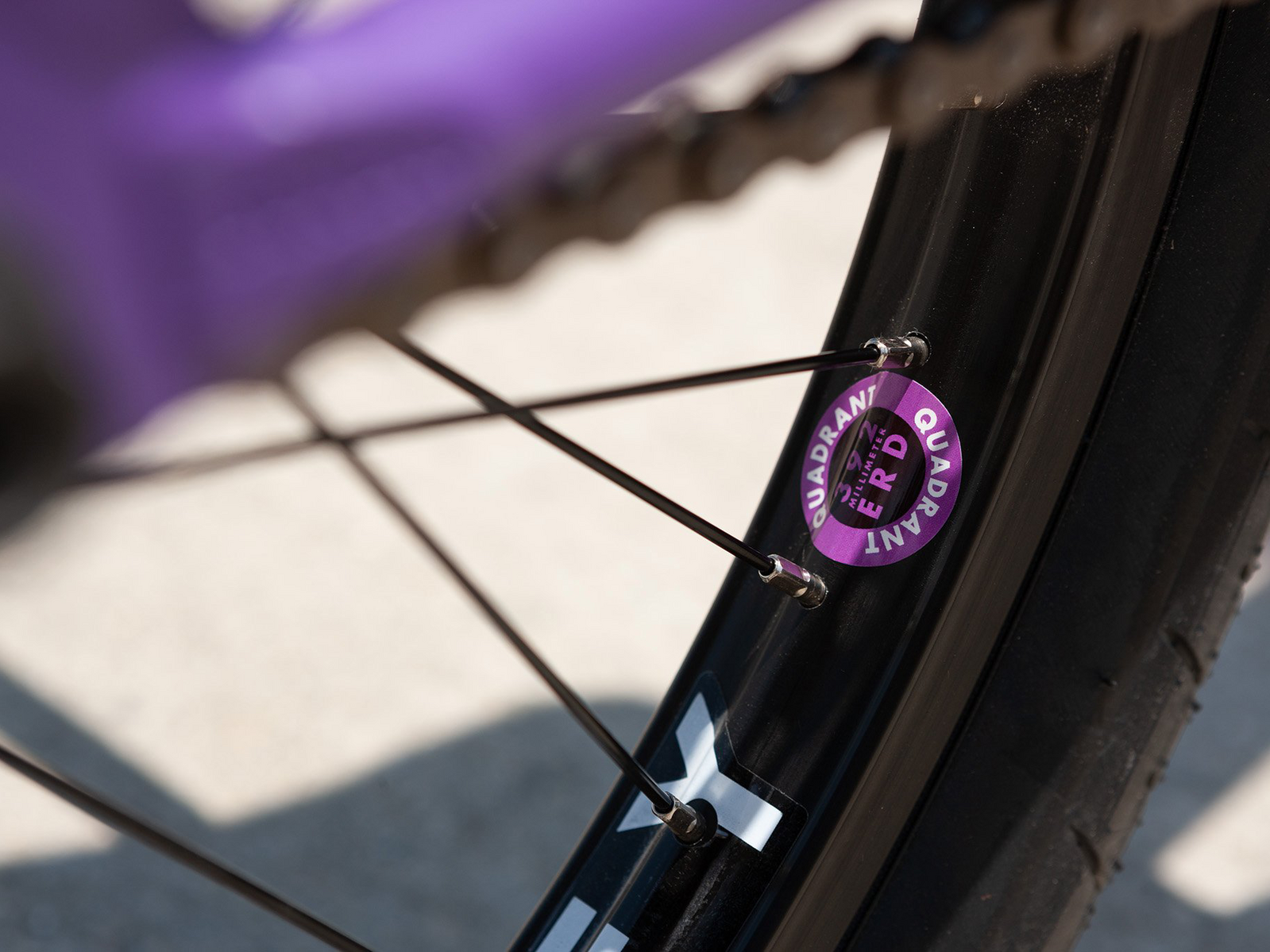

Rims - Odyssey Quadrant, 20", 36H
-

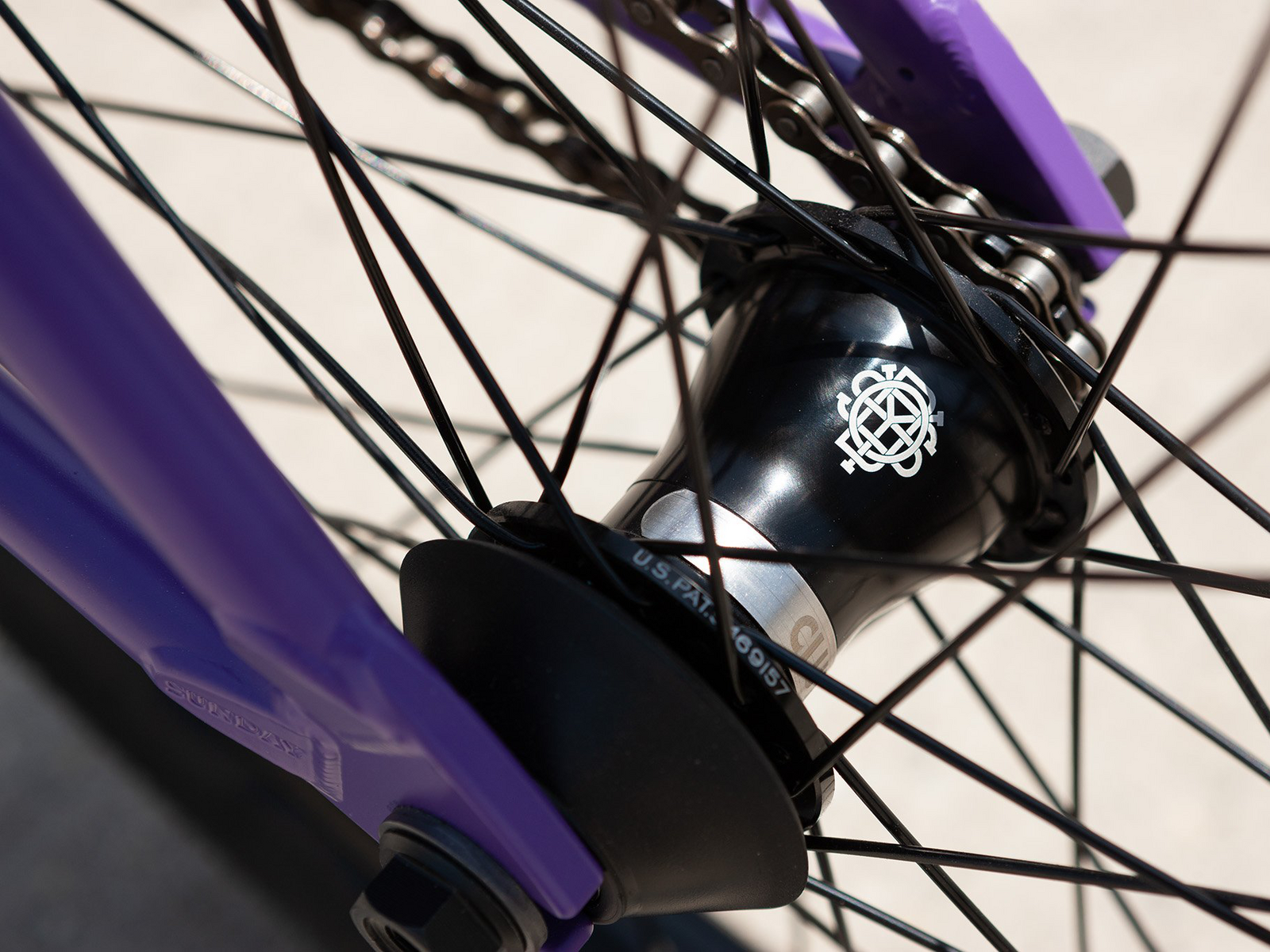

Front Hub - Sunday, 36H, low-flange, sealed , 3/8" female axle
-
Rear Hub - Odyssey Clutch v2 freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive PC guard
-
Spokes - 14g steel, black
-

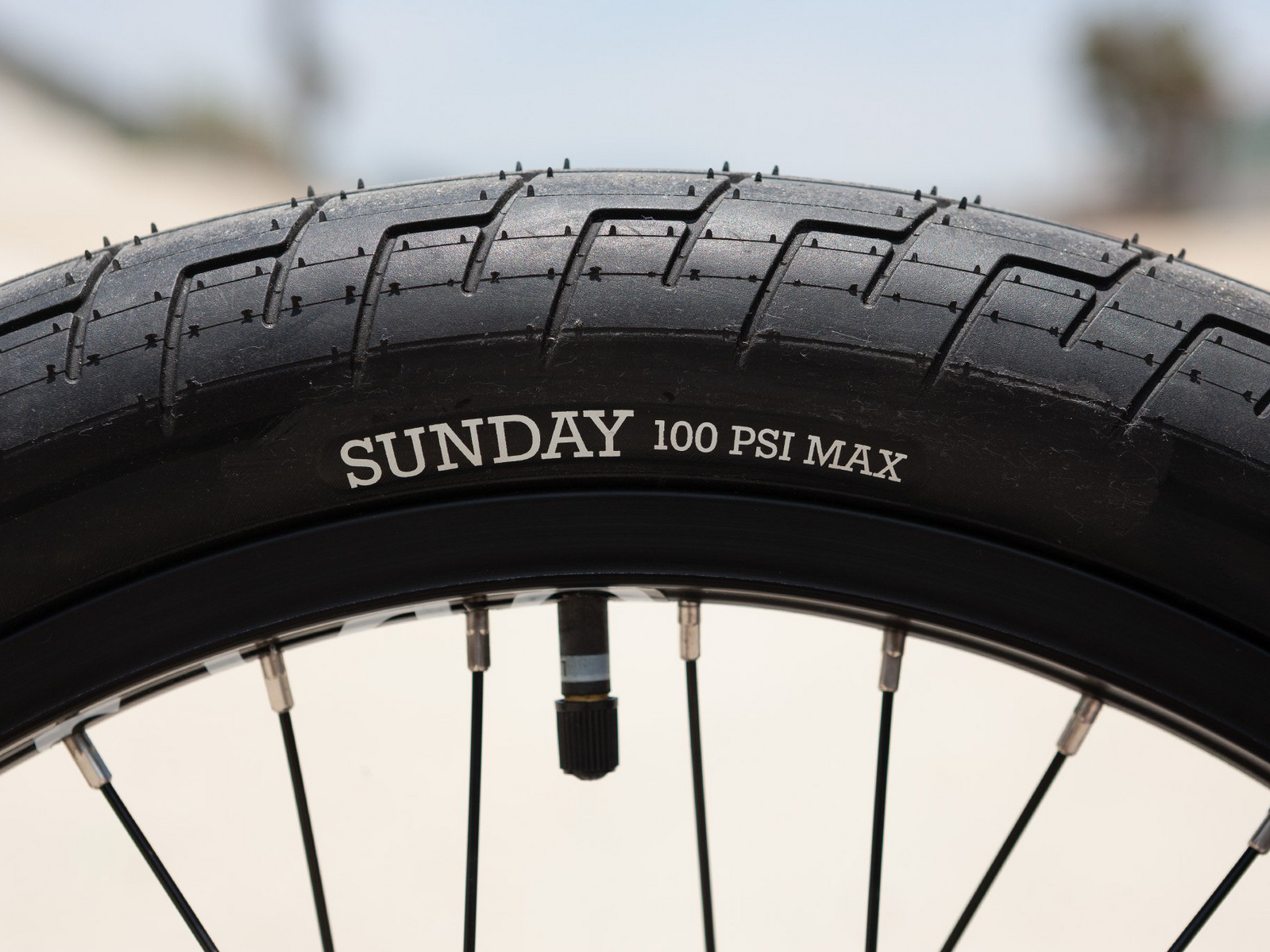

Tyres - Sunday Street Sweeper v2, 20 x 2.4" (F & R)
-
Chain - KMC Z1 wide
-
Approx. Weight - 11.33kgs (brakeless)
Frame Geometry
-
Top Tube Length - 20.75"
-
Head Tube Angle - 75.25°
-
Seat Tube Angle - 71°
-
Chainstay Length - 12.7"-13”
-
Bottom Bracket Height - 11.7"
-
Headtube Length - 4.7"
-
Standover - 8.85”
Handlebar Geometry
-
Rise - 9"
-
Width - 29"
-
Backsweep - 12°
-
Upsweep - 3°
