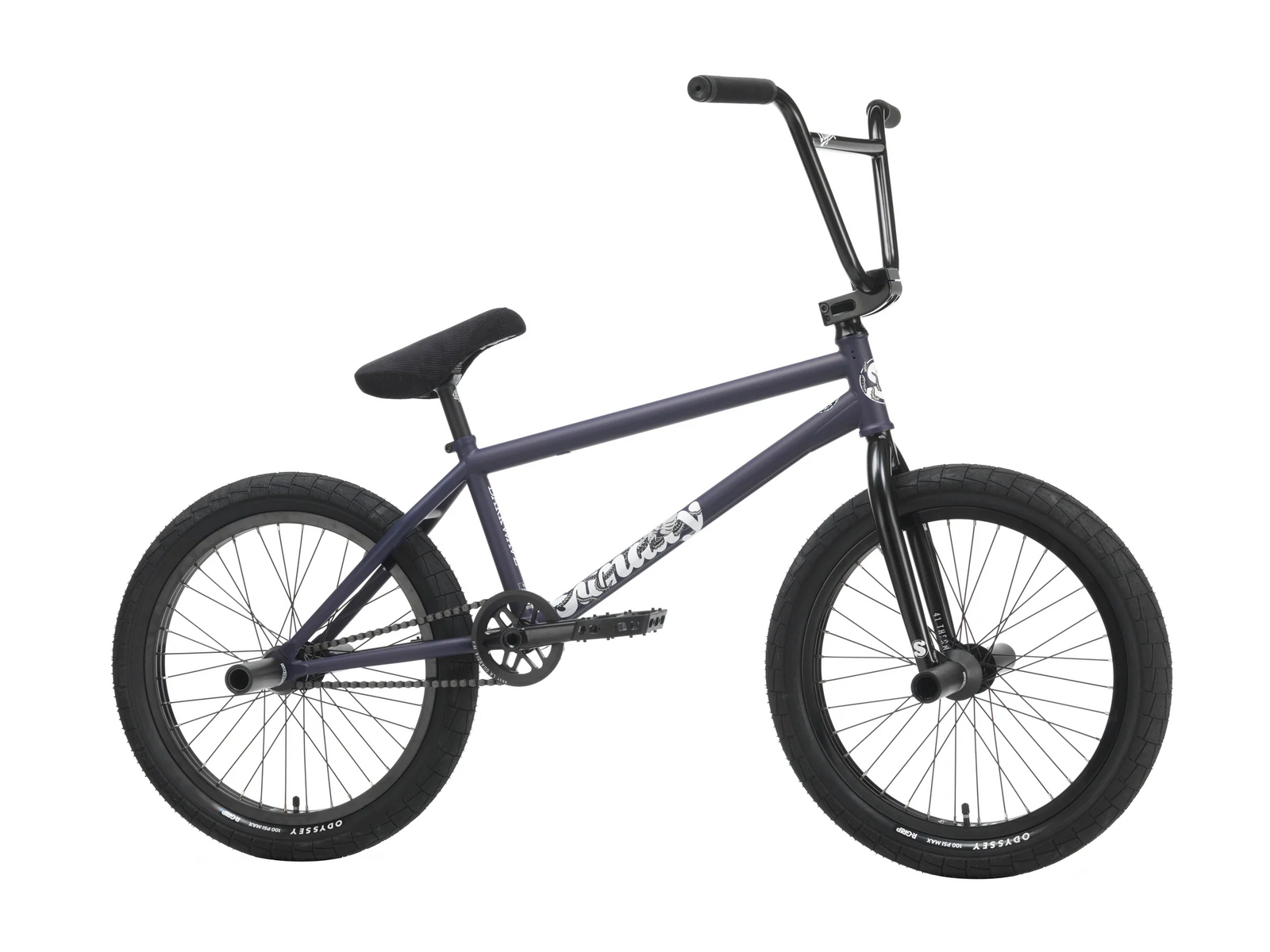

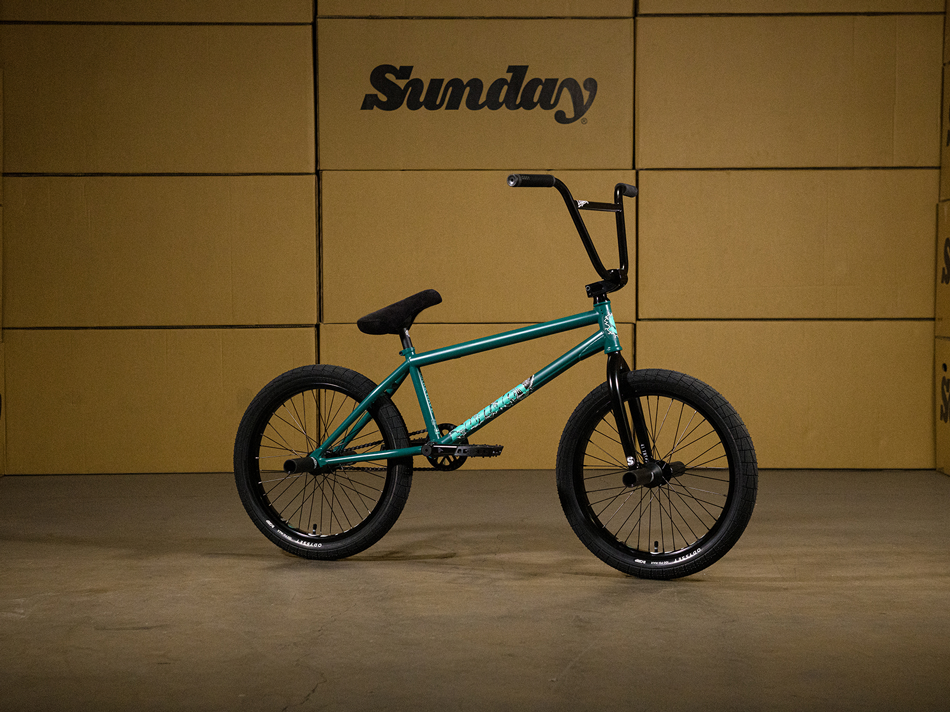

Sunday 20" Darkwave Authentic (Raiford) Bike
This is the Broc Raiford Darkwave AuthenticBMX bike, this model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey product.
Features
-
100% aftermarket parts kit
-
Lifetime warranty on bars, forks, and cranks
-
Sunday Darkwave frame
-
Sunday Darkwave 41-thermal forks
-
Odyssey BROC 41-thermal bars
-
Odyssey Thunderbolt 41-thermal cranks
-
Odyssey Broc v2 stem
-
Odyssey Clutch v2 freecoaster
-
Odyssey Vandero Pro front hub
-
Odyssey Hazard lite rims
-
Odyssey Broc tyres with R-grip
Specifications
-

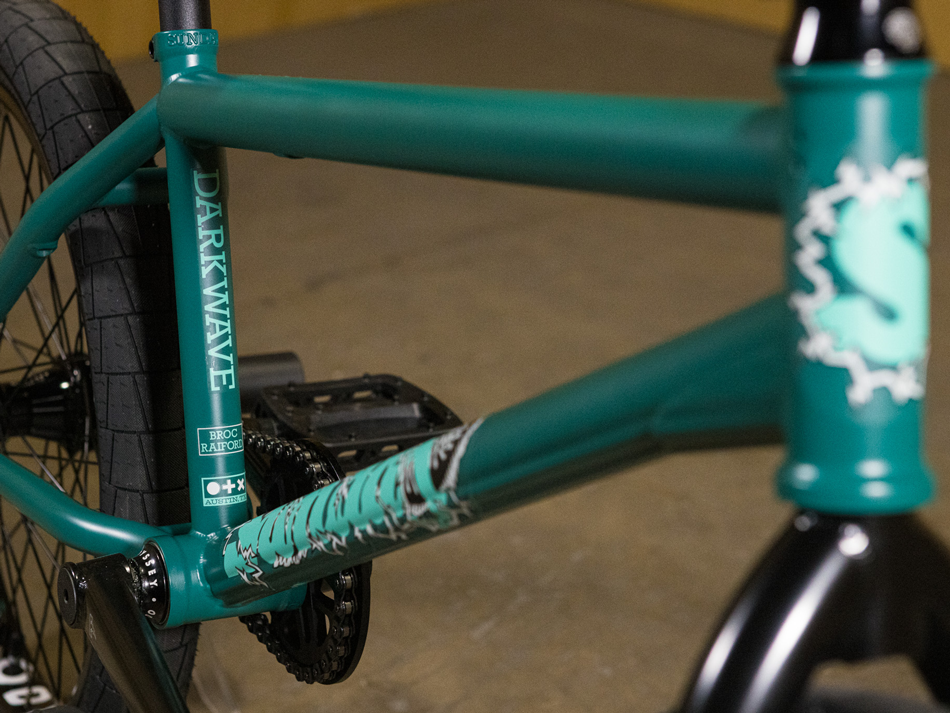

Frame - Sunday 'Darkwave', 21.25" TT, 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
-
Fork - Sunday 'Darkwave', 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
-

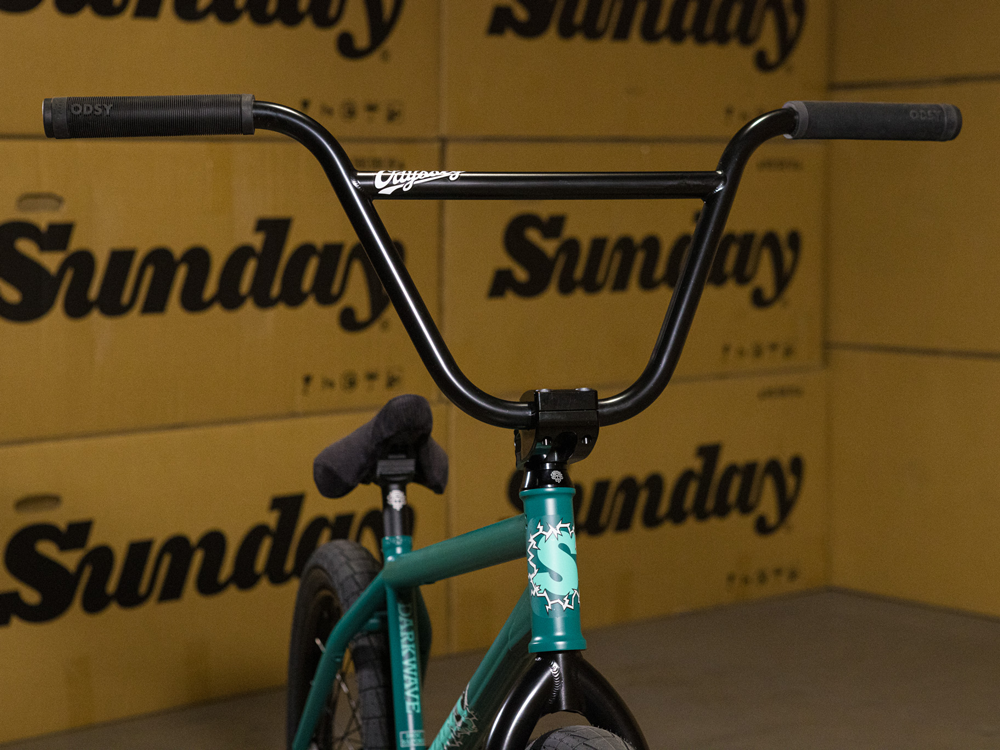

Handlebar - Odyssey 'BROC' Bar, 41-Thermal, aftermarket bar
-
Stem - Odyssey 'BROC V2' Stem, 50mm
-
Headset - Odyssey 'Pro' Conical, 1-1/8"
-
Headset Cap - Sunday aftermarket, aluminum
-
Brake Lever - Odyssey 'Springfield'
-
Brakes - Odyssey 'Springfield' U-brake
-
Brake Cable - Odyssey Linear 'Quik Slic'
-

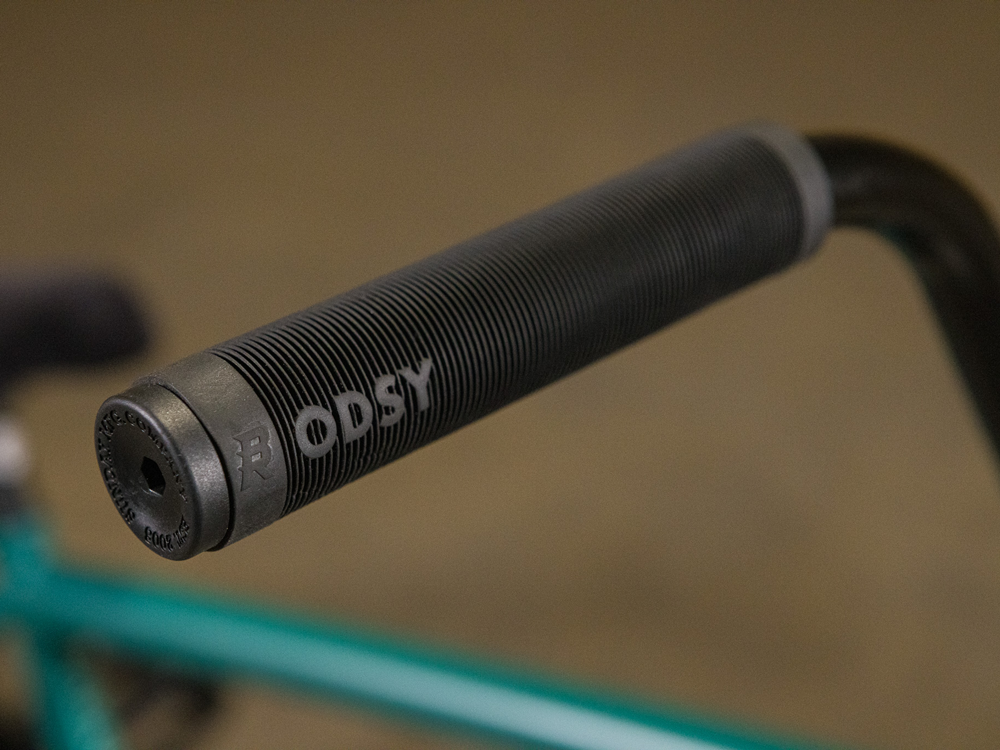

Grips - Odyssey 'Broc Raiford'
-

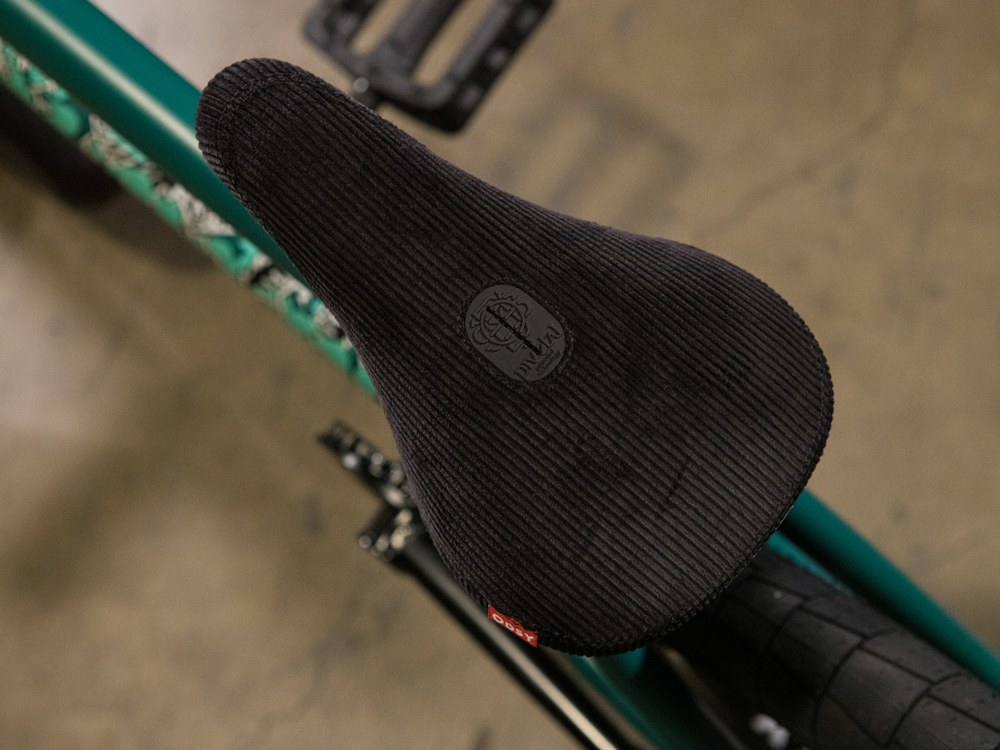

Seat - Odyssey 'Broc Raiford Signature', pivotal
-
Seat Alternate - Odyssey 'Big Stitch', pivotal
-
Seat post - Odyssey pivotal
-
Seat Clamp - Integrated
-

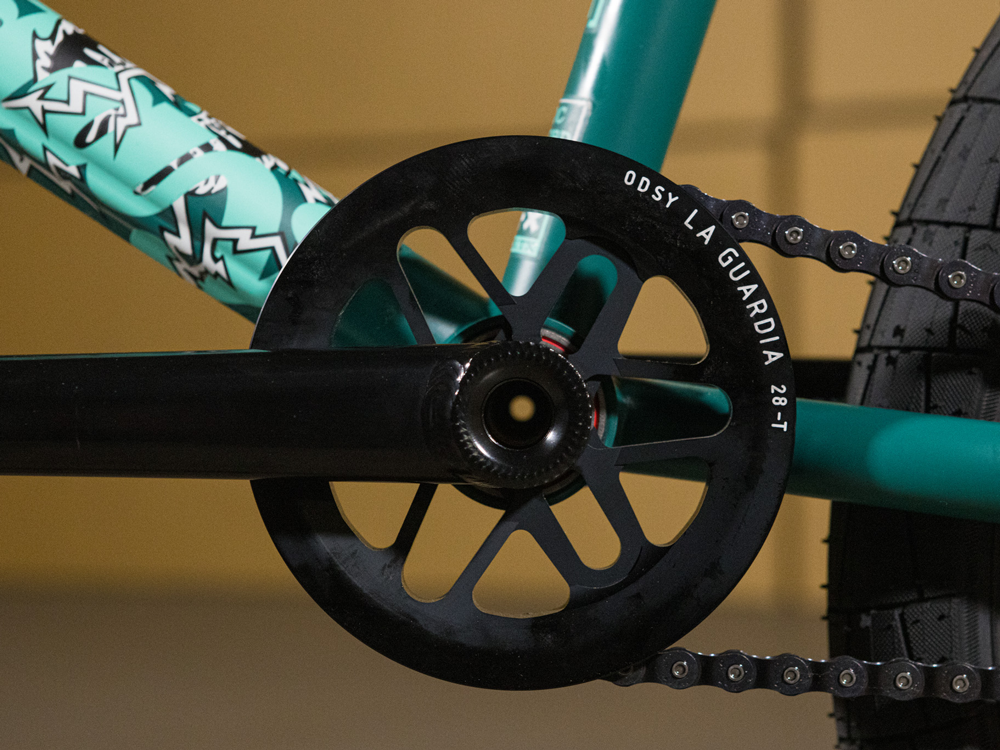

Sprocket - Odyssey 'La Guardia' sprocket, 28T
-
Cranks - Odyssey 'Thunderbolt', 170mm, 100% Cr-Mo, 41-thermal,
-
BB Parts - Odyssey sealed, mid, 22mm
-
Pedals - Odyssey 'Twisted PC' Pro
-
Rims - Odyssey 'Hazard lite', 20", 36H
-
Front Hub - Odyssey 'Vandero Pro', 36H, sealed, 3/8" female axle, 2 plastic guards
-
Rear Hub - Odyssey 'Clutch V2' freecoaster, 36H, 14mm female axle w/ 9T driver, non-drive side plastic guard
-
Spokes - 14g steel, black
-
Tyres - Odyssey 'Broc' tyre, 20 x 2.4" (F & R)
-
Chain - Odyssey 'Bluebird' half-link
-
Pegs - Sunday 'Seeley' peg 4.75" (x4)
-
Approx. Weight - 24.97lbs (brakeless)
Frame Geometry
-
Top Tube Length - 21.25"
-
Head Tube Angle - 75.25°
-
Seat Tube Angle - 71°
-
Chainstay Length - 13.25"-13.5”
-
Bottom Bracket Height - 11.75"
-
Standover - 9.25”
Handlebar Geometry
-
Rise - 9.8"
-
Width - 29"
-
Backsweep - 10°
-
Upsweep - 2°
