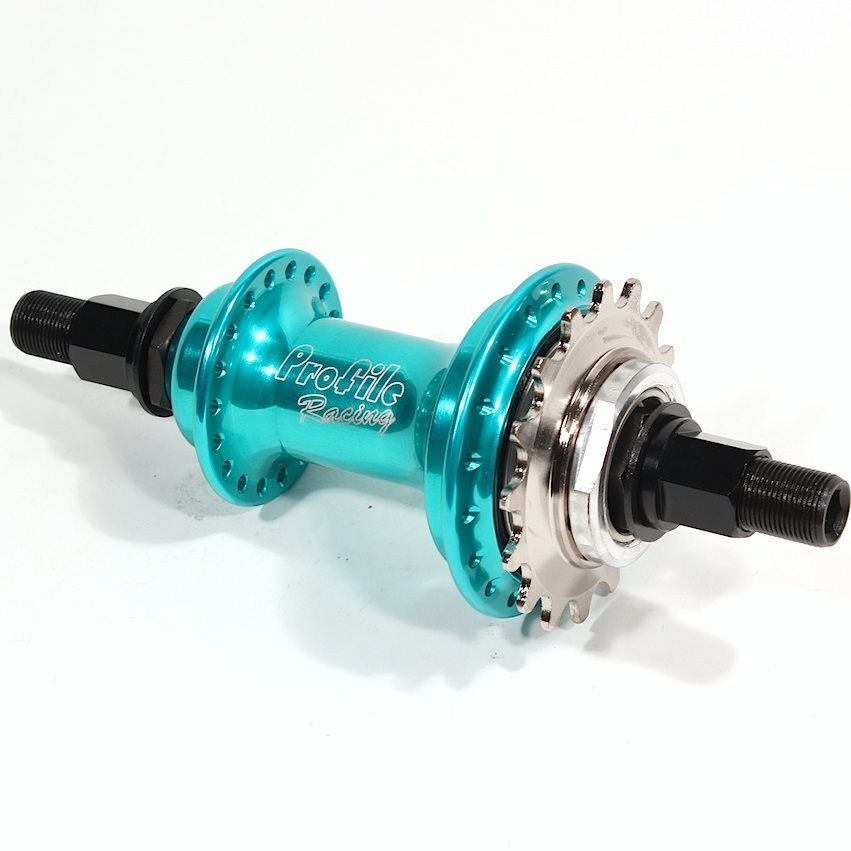

Profile BMX Elite Hub Rear / 36H
Profile Racing designed Elite Cassette BMX Hubs to be the best racing hubs available. They are also suitable for trails and light park use.
-
6 pawl system designed for BMX Racing and MTB usage. Also suitable for BMX Trails and light park.
-
6 pawl driver for 204 points of engagement means instant forward motion at the first application of pedal pressure.
-
Black anodized Volcano cones and aluminum cone spacers with hardened CrMo knurls to bite into dropouts.
-

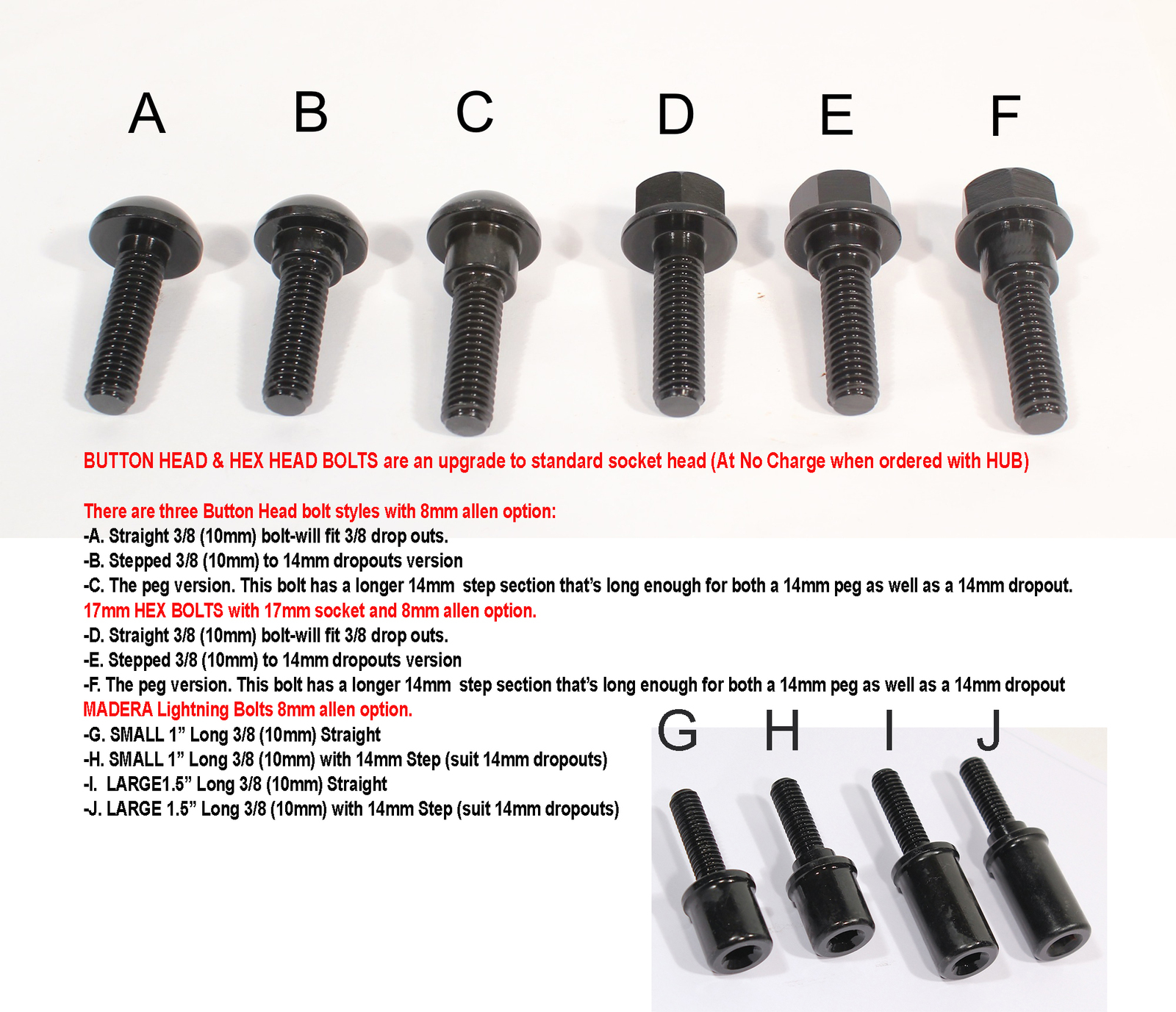

Bolt choices for standard 3/8" threaded aluminum axle:
-
Comes with Standard 3/8 socket head bolts(8mm hex) & anodized Volcano cones
-
Other options avaialble:
-
17mm Hex Head outer w/8mm internal hex
-
Button Head w/8mm internal hex
-
CrMo or Ti 14mm axle options(14mm Alum nuts included) .
-

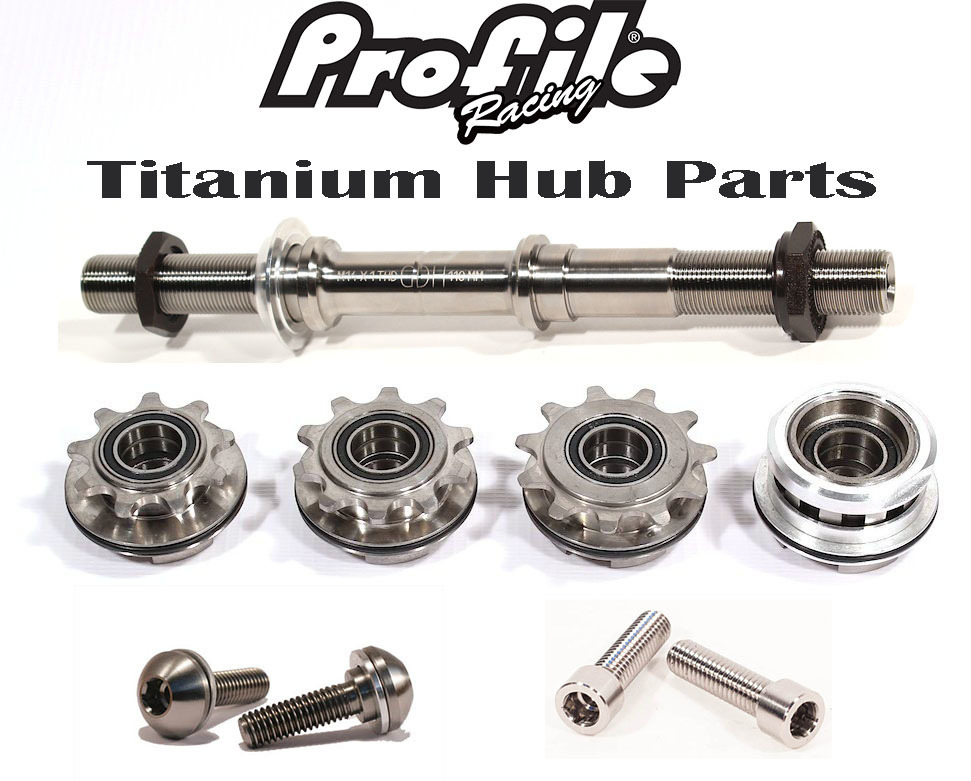

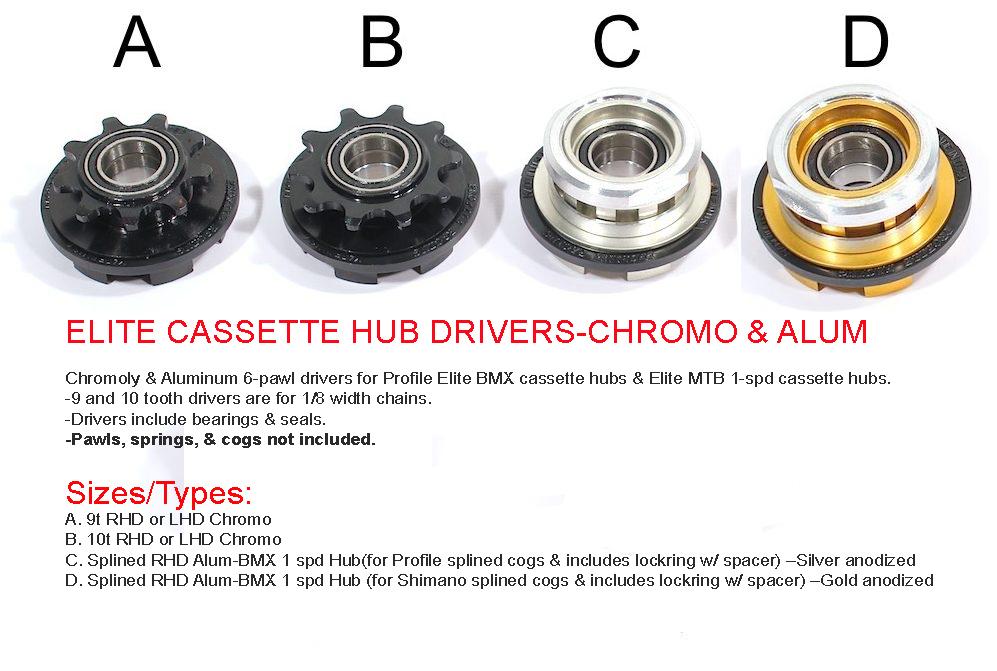

CrMo 9t Driver as standard or Ti one-piece drivers available.
-
Aluminum or Titanium splined drivers for Profile Cogs.
-

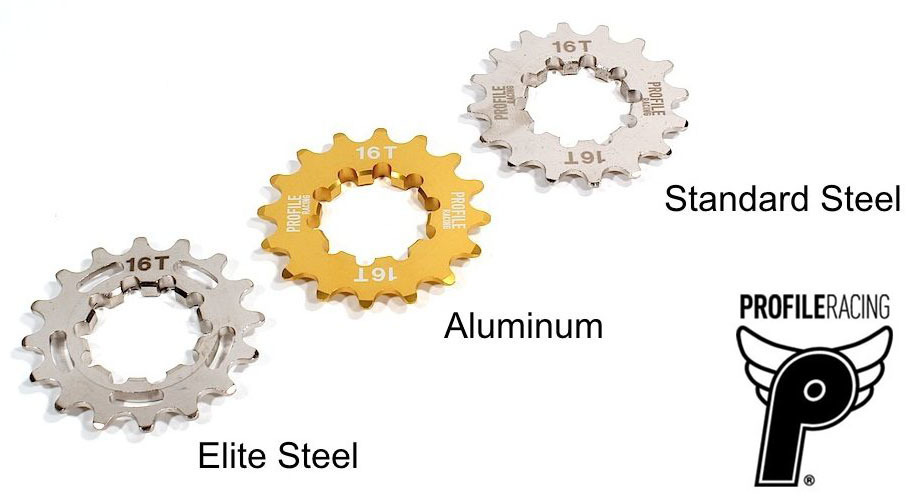

Also available with CrMo Cogs, or upgrade to Aluminum or Elite CrMo Cogs.
-
RHD or LHD (36h & 9t Only)
-
Comes in 36h, Also available in 28h (RHD Only)
-
Standard BMX 110mm hub width
-
3/8's aluminum axle NOT intended for heavy street riding.
-

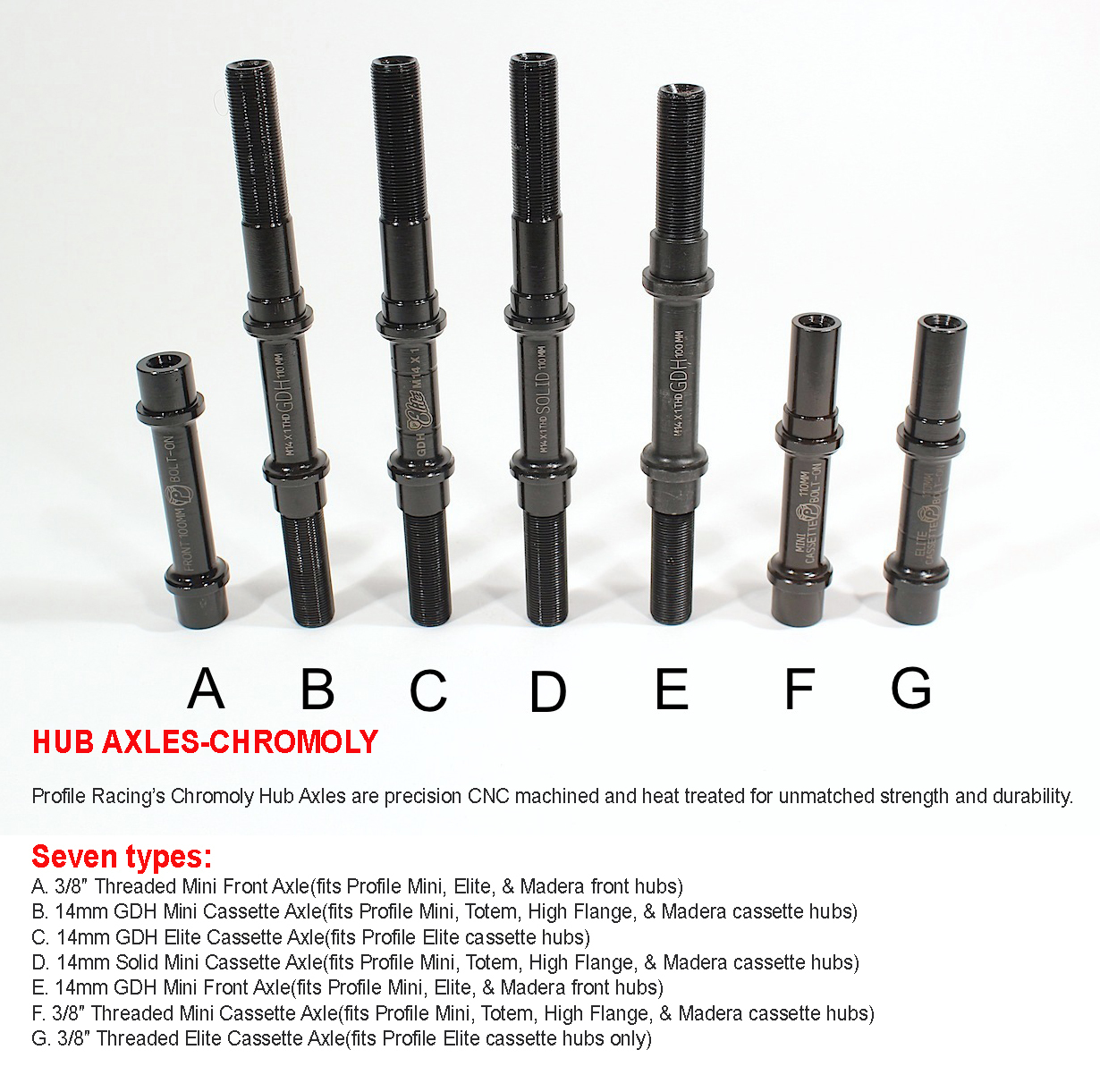

See photos for different axle/hardware options
-
Want hubs with different axles and/or hardware, hit us up for a special quote.
Colors: Red, Black, Blue, Polished, Gold , Green, Purple, Aqua, Matte Black, White
Elite Cassette Hub Weights:
Hub w/ 3/8 CrMo Bolts, 9t CrMo Driver: 15.6oz / 443g
Hub w/ 3/8 CrMo Bolts, 9t Ti Driver: 13.65oz / 388g
Hub w/ 3/8 Ti Bolts, 9t CrMo Driver: 14.75oz / 419g
Hub w/ 3/8 Ti Bolts, 9t Ti Driver: 12.80g / 364g
Hub w/ 3/8 CrMo bolts, Alu Driver, 16t CrMo Cog: 15.15oz / 430g
Hub w/ 3/8 CrMo bolts, Alu Driver, 16t Elite CrMo Cog: 14.80oz / 421g
Hub w/ 3/8 CrMo bolts, Alu Driver, 16t Alu Cog: 13.95oz / 396g
Hub w/ 3/8 Ti bolts, Alu Driver, 16t CrMo Cog: 14.3oz / 406g
Hub w/ 3/8 Ti bolts, Alu Driver, 16t Elite CrMo Cog: 14.0oz / 397g
Hub w/ 3/8 Ti bolts, Aluminum Driver, 16t Aluminum Cog: 13.05oz / 370g
Hub w/ 3/8 CrMo bolts, Ti Driver, 16t CrMo Cog: 16oz / 455g
Hub w/ 3/8 CrMo bolts, Ti Driver, 16t Elite CrMo Cog: 15.7oz / 446g
Hub w/ 3/8 CrMo bolts, Ti Driver, 16t Aluminum Cog: 14.8oz / 420g
Hub w/ 3/8 Ti bolts, Ti Driver, 16t CrMo Cog: 15.2oz / 431g
Hub w/ 3/8 Ti bolts, Ti Driver, 16t Elite CrMo Cog: 14.85oz / 422g
Hub w/ 3/8 Ti bolts, Ti Driver, 16t Aluminum Cog: 13.95oz / 396g
Hub w/ 14mm GDH Chromo w/ chromo 9t: 17.95oz/509g
Hub w/ 14mm GDH Chromo w/ titanium 9t: 16.6oz/471g
Dimensions:
Axle width (Locknut to Locknut) - 110mm
Drive side flange diameter - 61mm
Non-Drive side flange diameter - 43mm
Drive side flange to locknut - 26mm
Non-Drive side flange to locknut - 22.5
